Introducing Scalable AV-over-IP for Any Installation
Simple networking and flexible signal routing
Discover how Lightware’s AV-over-IP products use standard network infrastructure to deliver video, audio and control signals with ease.

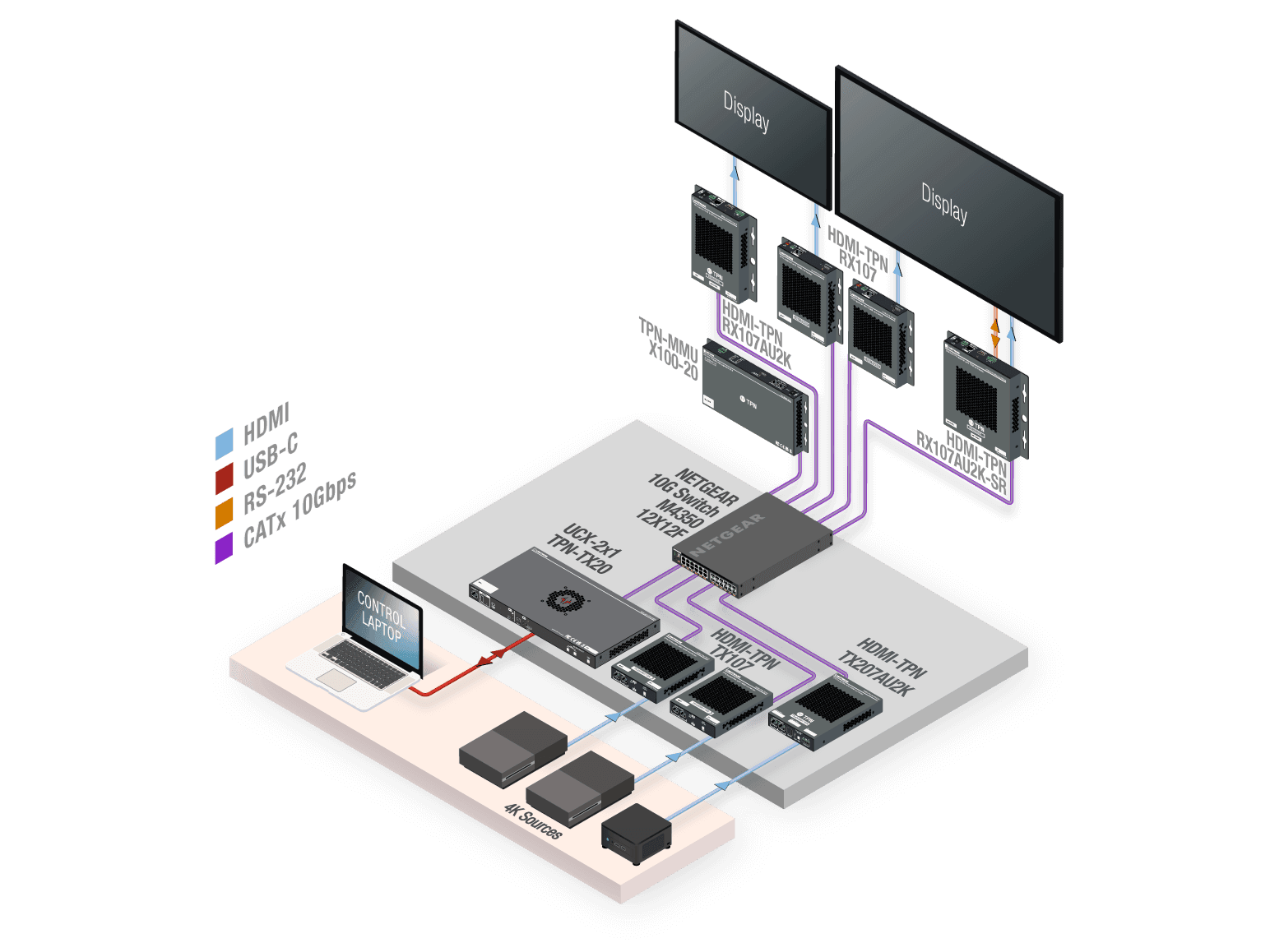

TPN MMU
The TPN product family is expanding with a new MMU (Matrix Management Unit), designed with integrators in mind. This next-generation platform features integrated device discovery that automatically detects and manages all SDVoE endpoints through a clean, intuitive interface. A NETGEAR switch will also be part of this setup, providing a reliable and familiar network backbone for SDVoE-based TPN deployments.
Secure, scalable SDVoE AV-over-IP network management
Up to 20 endpoints
Advanced Network Configuration
Simplified setup for both automatic and static IP addressing
Secure Multi-Network Operation
Operates seamlessly across AV Utility and Corporate network segments
Reduced on-site configuration time
No additional software installation needed
TPN Ecosystem

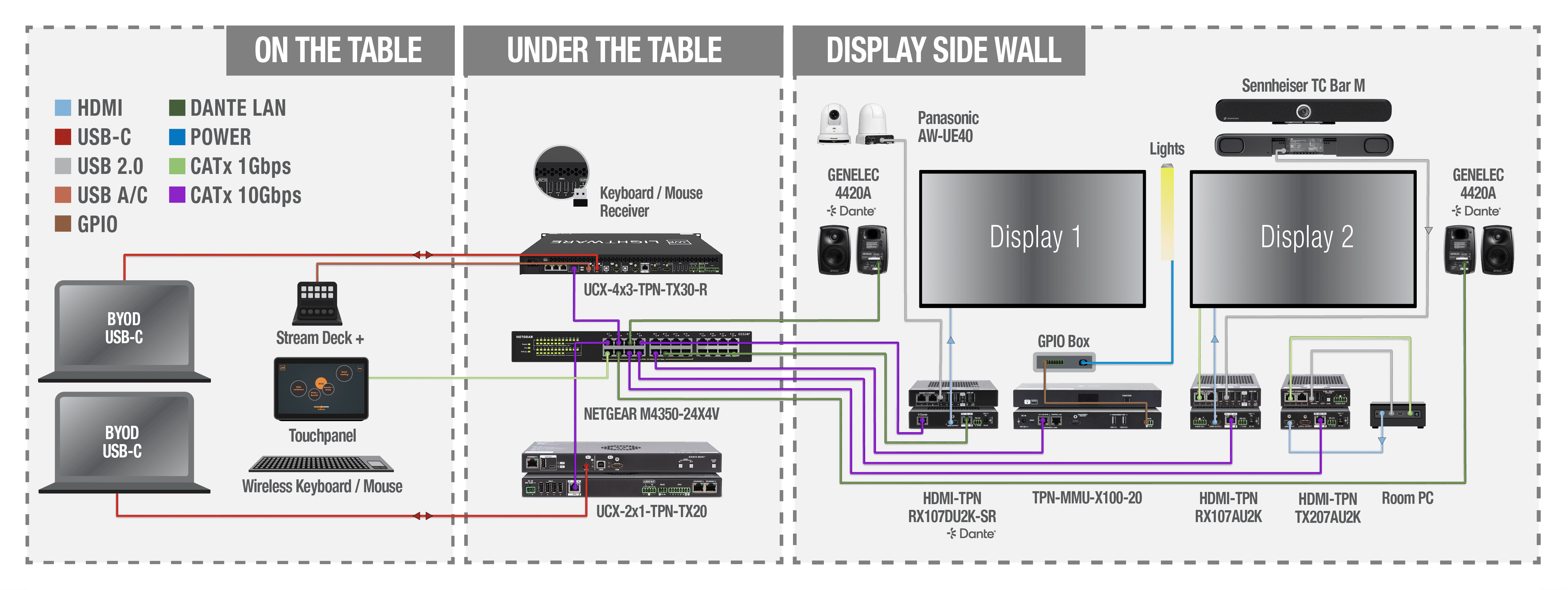

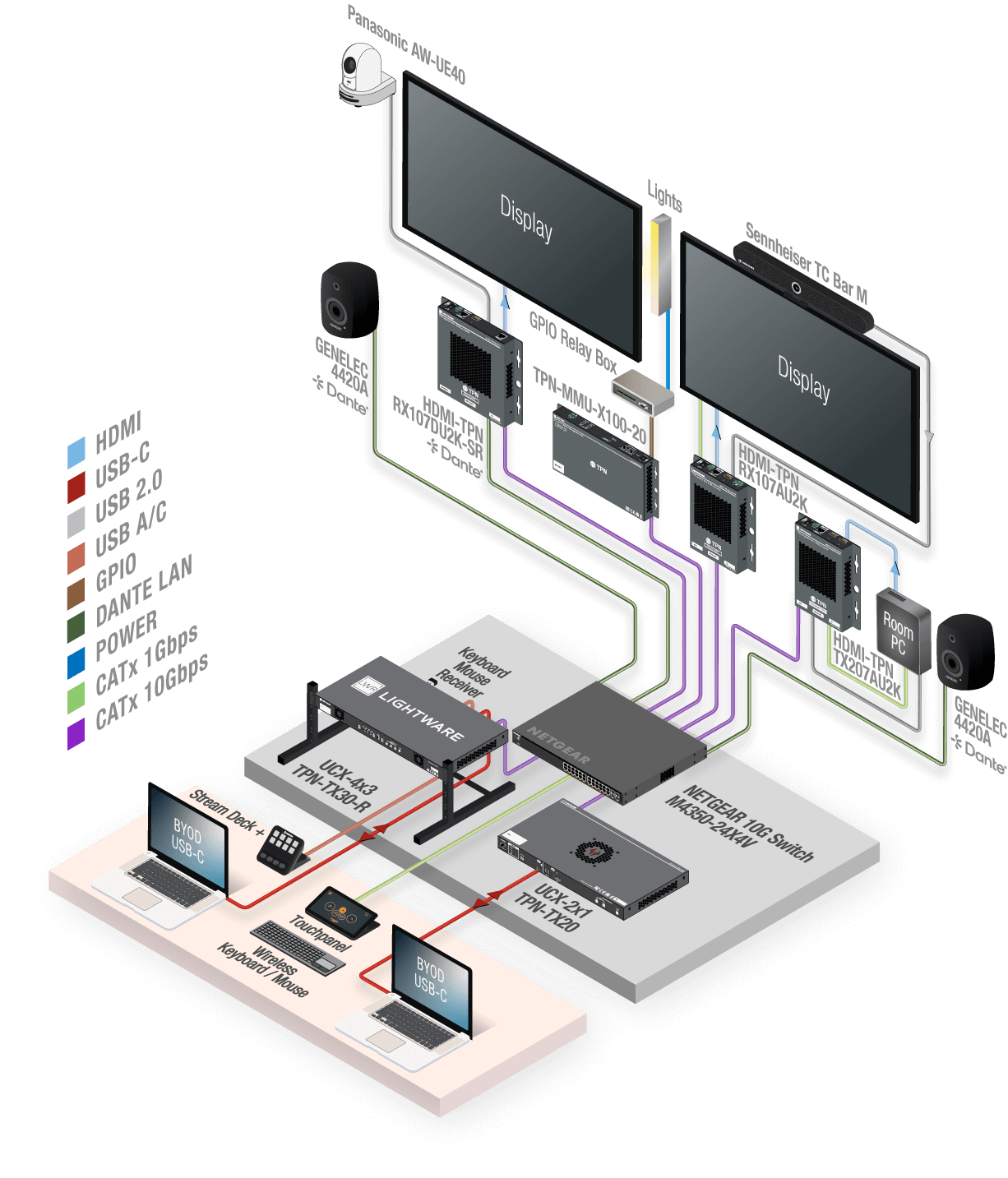

This demo showcases the flexibility of the Lightware TPN ecosystem through dynamic AV and USB routing controlled via an intuitive touch panel interface. The system features a fully separated USB layer and built-in Dante connectivity, enabling advanced hybrid workflows and seamless integration with professional audio environments.
We will also present the rack-mountable version of our TPN transmitter, the Taurus UCX-4x3-TPN-TX30-R. This universal transmitter switcher is part of Lightware’s SDVoE-based AV-over-IP ecosystem, delivering the full functionality of the UCX product family from a single source to multiple destinations across 10G Ethernet network.
Flexible source and USB routing
via touchpanel and Stream Deck
Partnering up with NETGEAR
the demo will be working with a M4350-24X4V switch
Dante connectivity
NEW: HDMI-TPN-RX107D
Rack-mountable Taurus TPN
COMING SOON: UCX-4x3-TPN-TX30-R

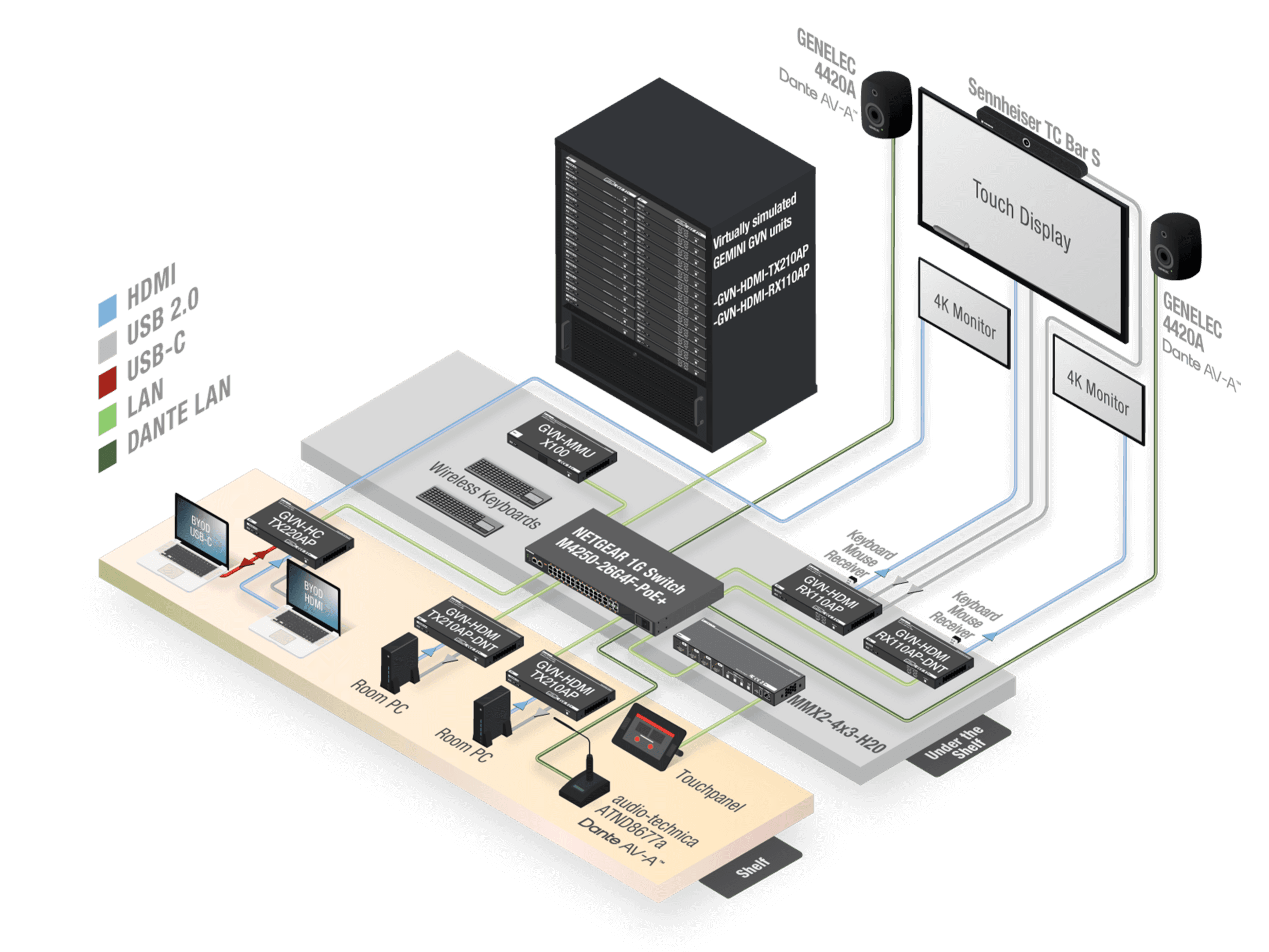

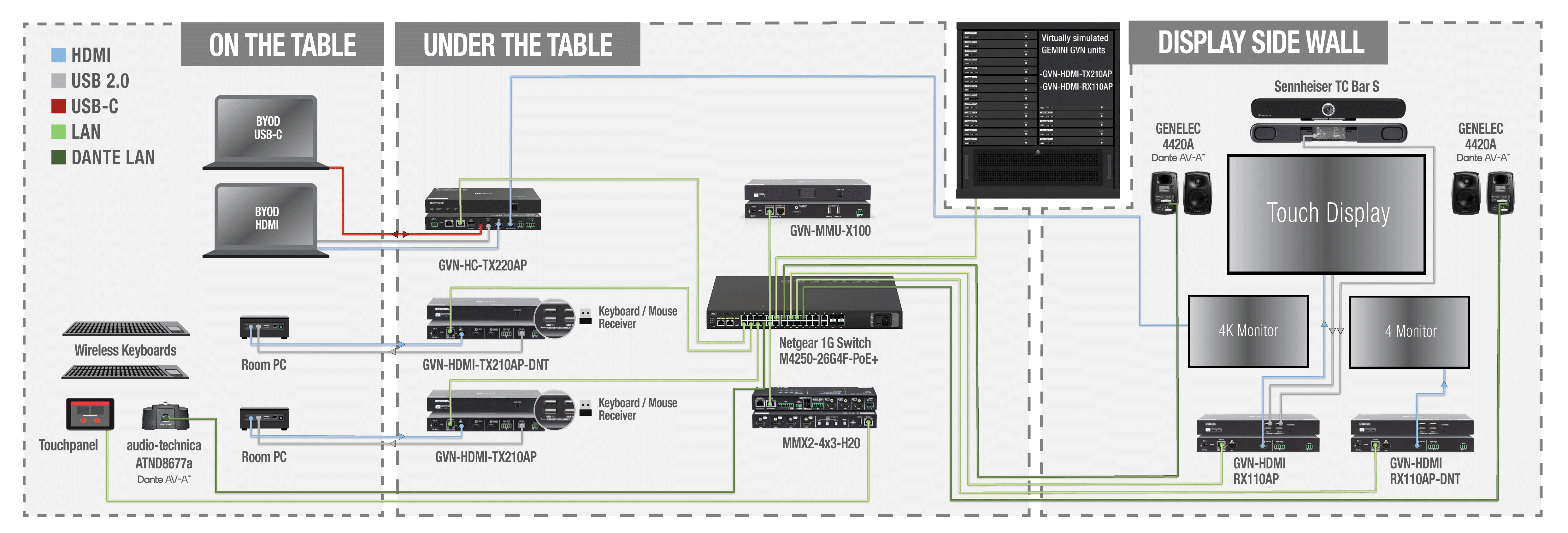

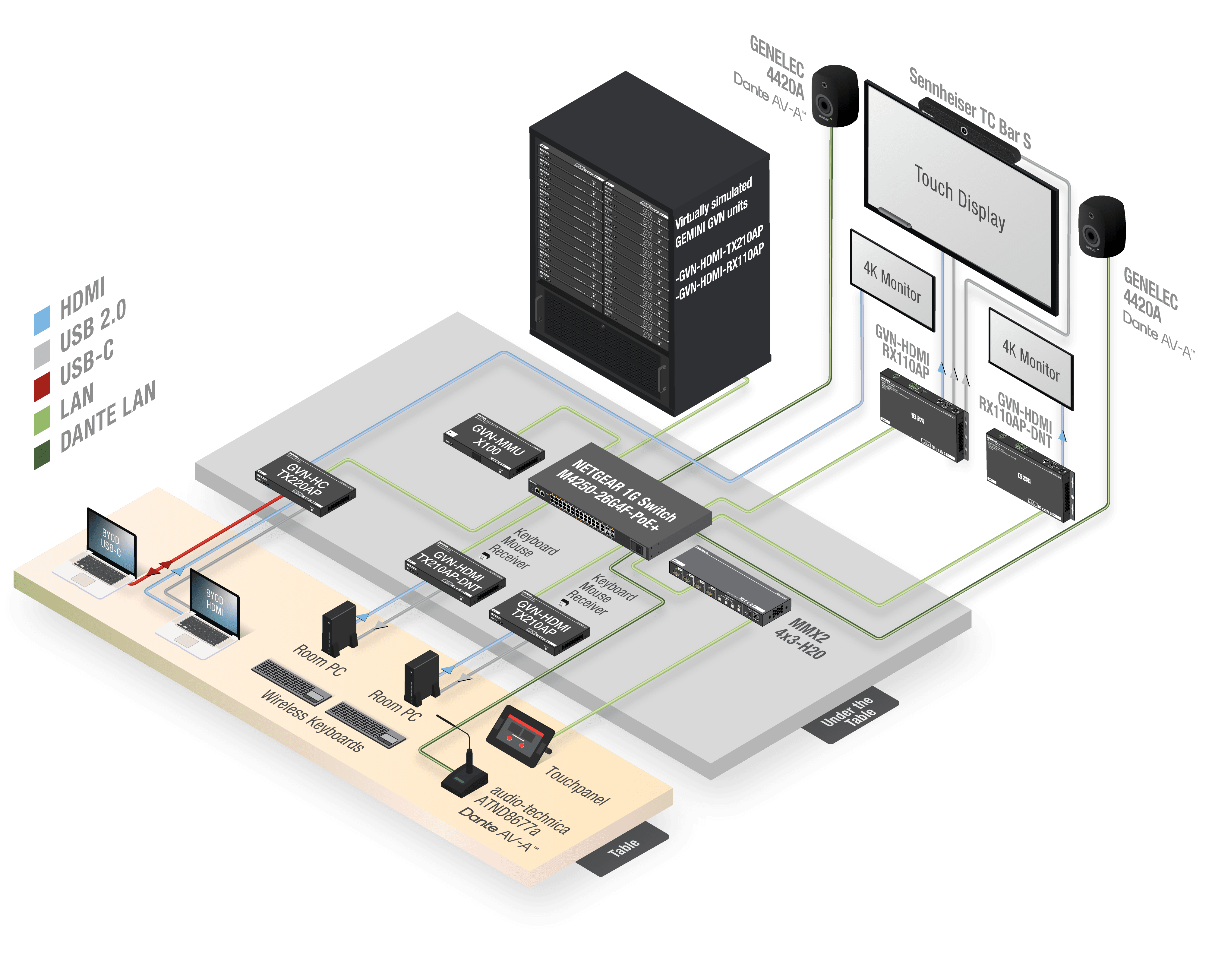

GVN demo
This demo reveals the latest evolution of Lightware’s GVN platform, now featuring USB-C connectivity, a major new capability that brings true plug-and-play simplicity, making it an ideal choice for retrofit installations as well.
The system will use a custom LARA configuration to showcase independent media layers, Dante audio compatibility, while also highlighting its robust scalability for large deployments.
Native USB-C connectivity for 1Gb
100 W charging, Ethernet and audio over USB
Independent media layers
The video and audio signals can be routed separately from the USB data
Auto-select in the USB-C transmitter
between the USB-C and HDMI input
Digital sound features
Dante and USB Audio Conversion
